Sign Documents

Sign document is a way of authenticating the contents of a document. A document with a valid signature is guaranteed not to have been changed since being signed. A valid signature has a digital ID issued by a trusted certificate authority. In order to sign documents, a digital ID may be imported or you can create a self-signed digital ID with PDFCool Studio.

You can choose a PKCS#12 digital ID create before, whose extension name is .pfx or .p12. You can also choose a digital ID stored in you Windows Certificate Store. If you have no existed certificate or PKCS#12 digital ID, you can create a new one with PDFCool Studio.

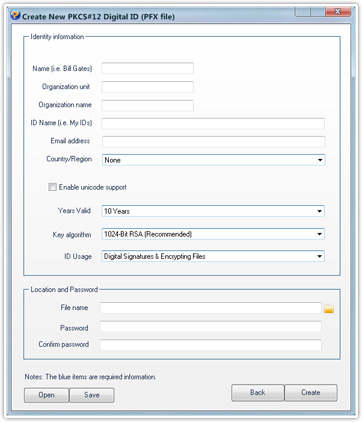

1. Create new digital ID

To open the "Sign Document -- Digital ID" dialog, from the top menu bar, choose "Security > Sign Document". Click on the "Create New ID" button to open the "Create New Digital ID" dialog. Enter the relevant information in those textboxes. Then, choose outputting name of the digital ID, and set the password.
Note: the blue items are required information.

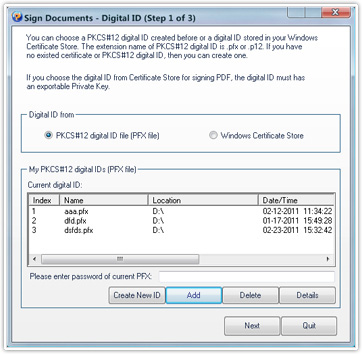

2. Add digital ID

Choose the "PKCS#12 digital ID file (PFX file)" option. Click on the "Add" button located in the bottom of the dialog to add PKCS#12 digital IDs to the list box. Choose a proper one by clicking the item, and enter the password;

You can also choose the "Windows Certificate Store" option, and the digital IDs in the Windows Certificate Store will automatically add to the list box. Choose a proper digital ID by clicking the item.

Then click on the "Next" button to open the Appearance of sign field dialog.

Note: If you choose the digital ID from Certificate Store for signing PDF, the digital ID must has an exportable Private Key.

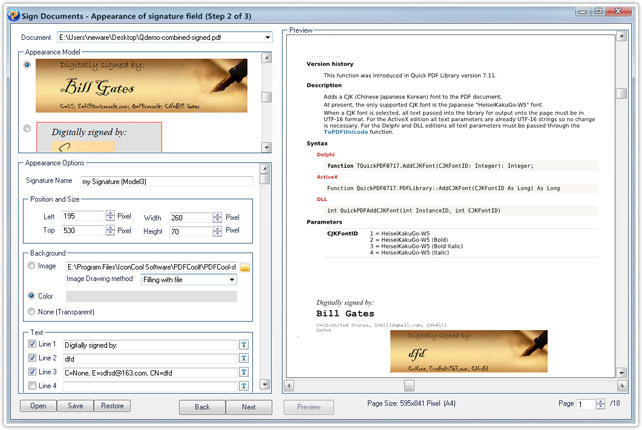

3. Choose a PDF document you wan to sign and a proper appearance model

Click on the dropdown list of Document, and choose one you want to sign from the PDF documents opened in program. Then choose a proper one from the appearance models (or double click to choose one) as the sign appearance;

Note: You can view all the models by moving the scrollbar or dragging the models by mouse.

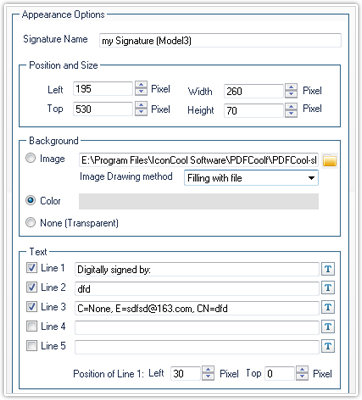

4. Set the appearance options of sign field

Set the name of signature field: Type the name of signature field in the "Signature Name" text box;

Set the position and size of signature field: Set the signature field¡¯s size and position in PDF document in the "Position and Size" box. You can directly use mouse to drag the signature field to set the position and size in the Preview pane;

Set the background of the signature field: Choose Image option, and click on the button to choose an image, which you want to add as the background of signature field. Then, choose the tile method. Choose the Color option, and click on the color bar to choose a background color of signature field in the color dialog. You can also choose "None" option to set the none-background signature field (transparent signature field);

Set the text of signature field:

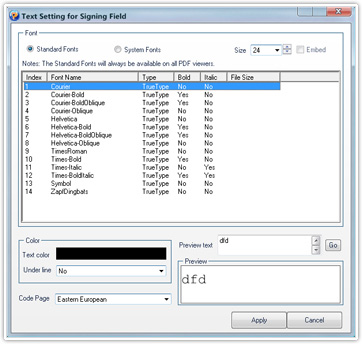

PDFCool Studio allows the user to set up to 5 lines text. You can type any text you want to display as signature in the text box. Click on the button to open the "Text Setting for Signing Field" dialog, in which you can set the text font, size, color, underline and embedded font etc.

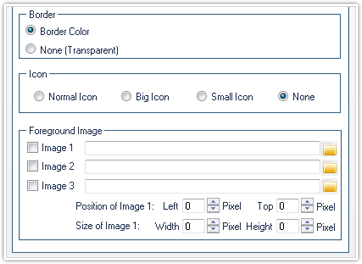

Set the border of signature field: Click on the color bar in "Border" box, and choose the border color of signature field in the color dialog. You can also choose the "None" option to set the none-border signature field;


Set the icon of signature field: You can set the icon as normal icon, big icon, small icon and none;

Set foreground image of signature field: PDFCool Studio allows the user to set up to 3 foreground images. Click on the button to choose the image you want to display as foreground image. Choose the proper parameters, you can set the foreground image¡¯s size and position in the signature field;

Once you change the parameters of signature field in the "Appearance Options" box, click on the Preview button to view the changed signature field. By click on the Open, Save, and Restore buttons lactated in the bottom left corner, the user can choose to open the signature project files, save the current options as project file, and back to the default value.

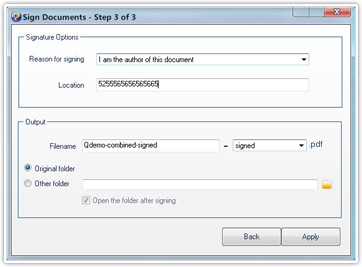

5. Set the signature options

Click on the Next button to open the "Sign Document -- Step 3 of 3" dialog. Click on the dropdown list of the "Reason for signing" to choose a proper signing reason. Type the location of signing in the Location text box;

6. Output setting

Set the output file name, the program default output name is the original name with "- signed.pdf". You can also type new output file name. About the output path, you can use the original folder as output path, or choose other output path;

7. Click on the Apply button to finish the sign document process.
